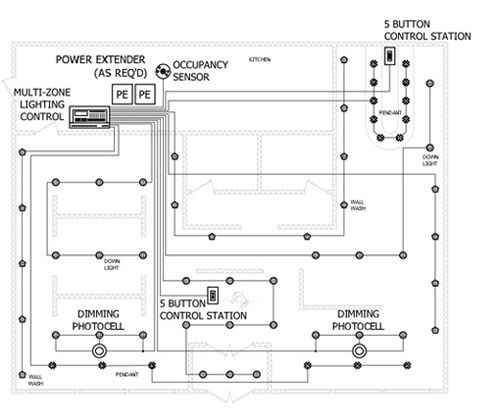

Restaurant

• Integrated room control from a single station—select lighting scenes manually with a single pushbutton, and automate lighting based on schedules and natural light present in the space
• Complete multi-event scheduling and integrated time clock makes it easy to plan for day-to-day scheduling based on operating hours, and also set special controls for events
• Interfaces with other building systems including HVAC and emergency for code compliant connectivity
• Supports all modern lighting aesthetics including LED lighting

• Stand-Alone System
• Multi-Zone Lighting Control & Dimmers (4 Room Stations)
• LCD Displays Status, functions and scenes information
• 1-8 Scenes Selection Buttons from Master & 9-16 from Entry Remote Station
• Infrared receiver for remote control scenes
• Supported Load Types – LED ss7 compliant, Incandescent, Magnetic Low Voltage
• 230VAC +/-10% 50Hz 2,400 W Max per Unit (continuous)
• Luma-Net Network up to 127 Devices per network and 2,000 ft max run length
• Level indicator for each zone
• Scheduler by weekly up to 64 events
• Sequencer up to 64 steps
• UL and ASHRAE 90.1 CA Title 2.4 Compliant
• Withstands voltage surge of up to 6,000V
• Restaurant, Commercial, Schools, Office and Condominium applications

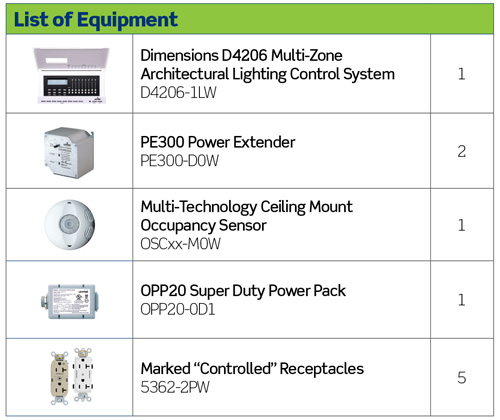

D4206-2LW  6 Dimmers / D4104-2LW  4 Dimmers

 D42P8-00A   Entry Remote Station   1- 8 Scenes/OFF

1. D4000 Stand-Alone System Multi-Zone Lighting Control & Dimmers
2. D4200 Room Combine
3. D4200 Remote Stations
4. ODCOP-DOW Dimming Photocell
5. OSC05-RMW Occupancy sensor
6. D4000 Instruction sheet
